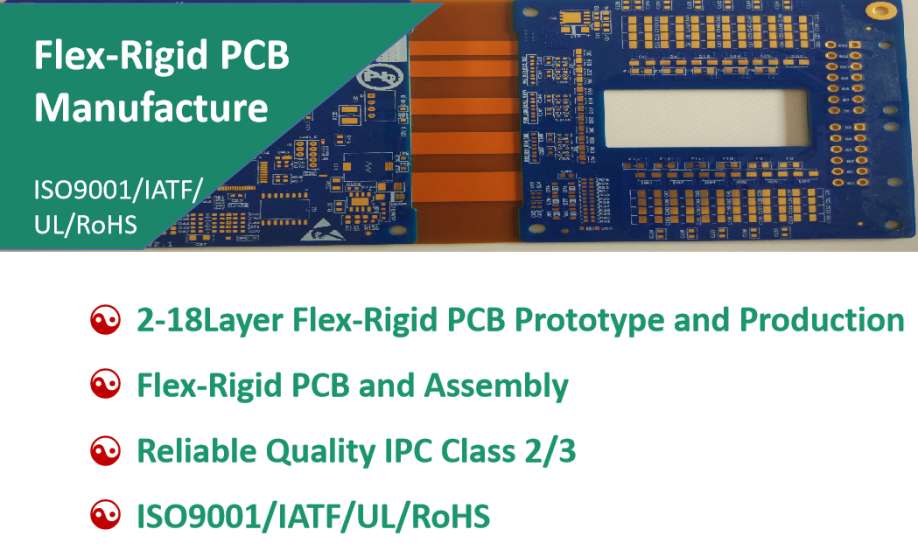

The development of FPC and PCB gave birth to a new product of Rigid-flex PCB boards (also called Flex-Rigid PCB). Flex-rigid PCB is a flexible circuit board and a rigid circuit board bonded together with laminating and other relevant technical processes. This made the Flex-rigid circuit board have both the characteristics of the FPC board and the Rigid PCB.



But Flex PCB also could add PI/FR4/SUS/Alumimum stiffeners to make some areas thicker and rigid. How to distinguish them? The main difference is the stiffeners have no any copper tracks and copper pads but only for mechnical support. And this is also the reason why Rigid-flex PCB is much more expensive than rigid PCB or Flex PCB. It's easy to make circuits on one same material, like the rigid PCB material FR4 and the flex PCB material PI. But to combind them together, it's not easy and the manufacturing processes are almost double to make the rigid-flex PCB and harder to control the PCB quality. Also rigid-flex PCB could also add stiffeners as same as flex PCB.



Advantages:

Since the Flex-rigid PCB has both the characteristics of the FPC and the characteristics of the PCB, it can be used in some products with special requirements. It has both a certain flexible area and a certain rigid area which could save the internal space, reduce the volume of finished products and improve product performance.



Disadvantages:

There are many production processes for Flex-rigid PCB, which are difficult to produce and have a low yield rate. The materials and manpower are relatively large. Therefore, the prices are relatively expensive and the production cycle is relatively long.



Rigid-flex PCB Technical Capabilities

Rigid-flex PCB Layer
NO.ITEMStandard CapabilitiesSpecial Capabilities
1Flex-Rigid PCB Layer2-18L2-24L
Rigid-flex PCB Material
2Base MaterialPI (12.5um, 25um, 50um, 100um),
FR4 TG 130, 150, 170, 180 (0.05mm-3.2mm)

3StiffenersPI Stiffener: 12.5/25/50/75/100/125/150/200/250 (um)
PET Stiffener: 0.125/0.188/0.25(mm)
FR4 Stiffener: 0.1mm-1.6mm2mm
SUS Stiffener: 0.1mm-0.5mm
Aluminum Stiffener: 0.1mm-0.5mm
4EMI shielding filmHCF-6000G, PC800, etc.
Board Size & Thickness
5Biggest Board Size250mm*610mm
6Board Thickness0.6mm-5.0mm
7Thickness Tolerance0.6mm~1mm: ±0.1mm
1mm~5mm: ±10%

Drill
8Minimum Hole Size0.1 mm
9Holes Size Tolerance±0.03 mm
10Holes Posistion Tolerance±0.05 mm
11Minimum vias Pad Size0.3mm
12Minimum Annular Ring Size0.1mm
13Blind/Buried ViasYes
Copper Tracks and Plating
14Minimum Track Width/Space0.1mm/0.1mm
15Track Width Tolerance20%
16Tracks/Pads Position Tolerance≥0.06 mm
17Tracks/Pads To Board Edge≥0.15 mm
18Golden Finger Pitch TolerancePitch:10~20mm : ± 0.03mm,
Pitch:20~50mm : ± 0.05mm

19Copper Plating Thickness20-35um
20Hole Copper Thickness20-35um
Surface Finish
21ENIGAU: 1-2u" Thickness
NI: 40-120u" Thickness
 3u” Thickness
22Electrolytic Nickel Gold
(Hard Gold Plating)
AU: 1-50u” Thickness
NI: 80-320u" Thickness

23Immersion Silver Ag: 6-12u" Thickness
24OSP 8-16u" Thickness
25Immersion Tin SN: 10-60u" Thickness
26Tin Plating SN: 5-30um Thickness
27ENEPIGAu:1-4u" Thickness
NI: 120-200u" Thickness
Pd:1-6u" Thickness

Coverlay
28Coverlay Opening Size Tolerance±0.1 mm±0.03 mm
29Minimum Drilling Size on Coverlay Opening0.45mm0.2mm
30Minimum Square Size on Coverlay Opening0.7mm*0.7mm0.2mm*0.2mm
31Coverlay Opening Position Tolerance±0.1 mm±0.03 mm
32Coverlay Align Tolerance±0.1 mm±0.02 mm
33Excessive Glue≤0.15 mm
34Minimum Area of Excessive Glue≤20% Pads Area
Solder Mask and Silkscreen
35Solder Mask Thickness15um +/-5um
36Solder Mask Tolerance For Opening Size+/-0.05mm+/-0.02mm
37Solder Mask Tolerance For Opening Position0.1mm+/-0.02mm
38Minimum Silkscreen line width0.13mm
39Minimum Silkscreen Gap0.2mm
40Minimum Silkscreen Position Tolerance+/-0.3mm
41Minimum Silkscreen height0.8mm
42Minimum Solder Mask Bridge0.13mm
Board Outline & Stiffeners
43Board Outline Tolerance
with Steel Die
±0.1 mm±0.03mm
44Board Outline Tolerance
with Knife Die
±0.2 mm
45Minimum Gap Between Drilling and Board Edge≥0.5 mm
46PSA Position Tolerance±0.2 mm
47Stiffeners Position Tolerance±0.2 mm
FPC E-Test
48Test Voltage10-50V
49Insulation Test Impedance≥10MΩ
50Conduction Test Impedance≤50Ω
51Impedance Tolerance10%
FPC Physical Property
52Solderability Test245±5℃, 3 Seconds For One Time,
Soldering Area≥95%

53Thermal Shock Test288±5℃, 10 Seconds Per 3 Times,
No Delamination and No Bubbles

54FCCL Peel Strength≥0.8kgf/㎠  (1cm width sample)
55Coverlay Peel Strength≥0.8kgf/㎠  (1cm width sample)
56Stiffeners Peel Strength 0.15 N/mm (Hot-Press Adhesive)
0.49 N/mm (PSA Adhesive)
