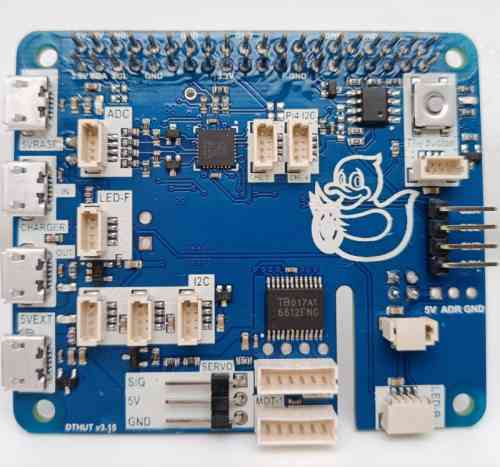

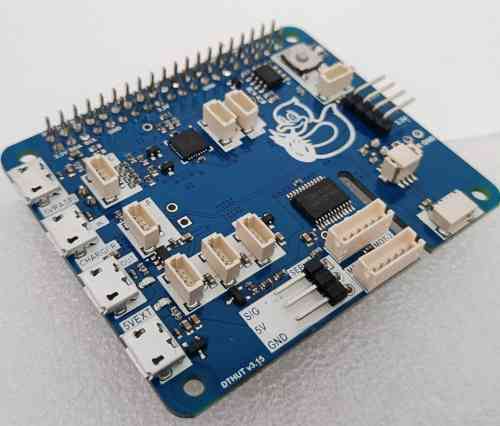

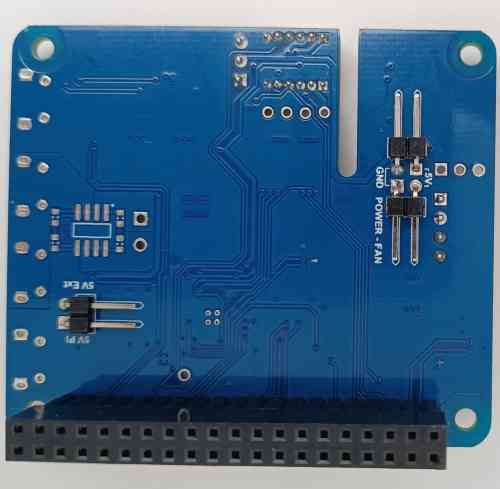

This Turnkey PCB Assembly project is a 2Layer FR4 PCB with 1.6mm Thickness, Copper 1oz, Both Sides Blue Solder Mask, Both Sides White Silkscreen, HASL Lead Free Finish. The unique parts quantity is 29, the total SMT parts is 81, the THT parts quantity is 12 and it has one QFN part. As you can see from the above PCBA pictures, the PCB board only required the SMT Assembly on the top side, and the bottom side only soldered some THT connectors.



This is a production order, to make it good, the client ordered 5pcs samples for checking the quality and function first. For the production order, we made the PCB in a 2*2-up panel which good for SMT assembly. In the same time, we started the Components sourcing job and we finished it within 2days and waiting for the parts delivery in the next 10days. When PCB boards and Components were all ready, we did IPQC for checking the process and then do SMT assembly to put all SMD parts on the PCB board and go through the reflow soldering oven. Once SMT assembly job done, the boards went through AOI for checking the soldering quality.  Since the PCB board had many THT parts, we made 6pcs of fixture for wave soldering to do the THT assembly which is good and quick for control the THT soldering. The client didn't ask us to do the FCT test and didn't provide the FCT test fixture. After THT assembly done, we did visual inspection for THT assembly and then FQC, and then packing and shipping.



Hope it makes sense, and below is the standard PCB assembly services we offer:


• One-Stop from Design to PCBA boards: we design the PCBA boards based on your needs and make the PCBA boards to meet all your needs.



• Turnkey PCB and Assembly: We make PCB boards following your Gerber files, purchase components as your BOM file, and do PCB assembly as the assembly drawing and P&P file shows.


• Multiple PCB Assembly Services: SMT, THT, Mixed Assembly, Package on Package (POP), Rigid PCBs, Flex PCBs - if there's a type of printed circuit board that can be assembled, we almost surely do it.


• Flexible Volume Assembly Alternatives: Prototypes, low volume, high volume — we do it all.


• Parts Sourcing: All components will get your approval before purchasing. We have years of experience and stable relationships with authorized electronic components manufacturers and distributors, so new & original parts will be provided.


• Comprehensive Quality Assurance: From visual inspection to AOI, X-ray inspection, ICT and FCT, we take quality control very seriously and test everything rigorously for functionality and quality.





PCB Capabilities Short List



Layer1-48Layers
PCB Material

Rigid PCB Material: FR4 TG 130 - FR4 TG 180, Rogers, Aluminum, Copper core, Rogers, etc.



Flex PCB Material: PI, PET, Super-thin FR4, etc.

Minimum Track width/space

Rigid PCB: 0.078mm/0.078mm



Flex PCB: 0.035mm/0.035mm

Blind/Buried ViasYes
Minimum holes size

Rigid PCB: 0.1mm

Flex PCB: 0.025mm

Surface FinishHASL, Immersion Gold (ENIG), Immersion Tin, Immersion Silver, OSP, ENEPIG, Hard Gold Plating





PCB Assembly Capabilities Short List



QuantityFrom prototype to mass production (No MOQ and no limit)
Assemble Types

SMT, THT, Hybrid, Single side or both sides

Available for Rigid PCB, Flex PCB and Rigid-Flex PCB

Parts ProcurementFull Turnkey (We provide all parts)
Partial Turnkey (Customer provide some parts, and we provide the rest)
Kitted (Customer provide all parts)
Components Package01005, 0201, BGA, QFN, QFP, etc.
TestVisual Inspecction, AOI, X-Ray, ICT, FCT, etc.
Other ServicesIC Programming, Box Build, PCBA copy, Injection Molding, CNC, etc.





Files Required for Turnkey PCB Assembly



Files RequiredSpecification
Gerber files*Gerber files in format of RS-274X for PCB fabrication, or other PCB files like .pcbdoc, .pcb, .brd, etc.
BOM files*BOM file in excel format for components sourcing and PCB assembly. It should include the components basic information: Reference Designators, Quantity, Part number, Description, etc. Click BOM Template for your reference.
Pick & Place file*Also known as Centroid file or XY data. It describes the position and orientation of all the surface mount parts and it can help us to quickly programming the SMT assembly machines. Click P&P Template for your reference.
Assembly drawing (if available)  It includes the positions and polarities of the components designators which can help us better understand your assembly needs, correcting some ambiguous or even mistaken placements, and ends up with an excellent job. Click Assembly Drawing Template for your reference.
Testing Guide & Test Fixtures  (if necessary)To ensure the boards quality, we can test the boards following the provided testing guide & test fixtures before shipping.
Programming files & Programming tool  (if necessary)We could do IC programing for our customers if required.
